STANDARD MODELS

NEOPOST INTERFACES

SPECIAL MODELS OLDER FRANKING MACHINE INTERFACES
POST OFFICE OPTIONS STANDS
RATE CHANGE OPTIONS

STANDARD MODELS



24 key Postal Computer Scales

• 2kg, 3kg, 5kg or 12kg capacity
• weight steps 0–2kg : 0,5g
e weight steps 2–12kg : 1g
• large LCD-Display with backlight
• rate calculation and weighing
• counting function
• platform size 255 x 160mm



48 key Postal Computer Scales

• 2kg, 3kg, 5kg or 12kg capacity
• weight steps 0–2kg : 0,5g
wweight steps 0–12kg : 1g
• large LCD-Display with backlight
• rate calculation and weighing
• counting function
• platform size 255 x 160mm

additional:
• 4 soft keys near the display for the scroll
wfunktion and a dialog system
• 8 self-programmable memory keys
• electronic calibration system
• optional rate change per modem


NEOPOST INTERFACES

IJ35 / IJ40 interface

• RS232 interface standard
• transmission of Mini Dies
• transmission of Product Codes


IJ45 / IJ50 interface

• RS232 interface standard
• transmission of Mini Dies
• transmission of Product Codes


IJ65 - IJ90 interface (RS232)

• transmission of Mini Dies
• transmission of Product Codes

IJ65 - IJ85 interface (Current Loop)

• for all IJ65-IJ85 with I/O-card Current Loop interface


IJ85 - IJ110 interface (RS232)

• RS232 interface to all Neopost IJ85-IJ110 with winternal dynamic scale


SPECIAL MODELS

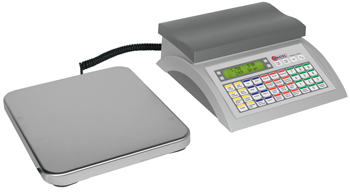

5kg + 50kg Dual Platform Scale
for letters and parcels

• standard scale with 5kg : 1g weigh steps
• stainless steel platform with 50kg : 10g weigh steps
• franking machine interface
• rate calculation and weighing
• weighing pan 25,5 x 16 cm
• platform size 27,5 x 31 cm


10kg combined letter and parcelscale

• interface to franking machines or PC
• weight steps 0-2kg : 0,5g / 2-5kg: 1g / 5-10kg : 5g
• large LCD-Display with backlight
• rate calculation and weighing
• counting function
• stainless steel platform
• platform size 27,5 x 19 x 3,5 cm

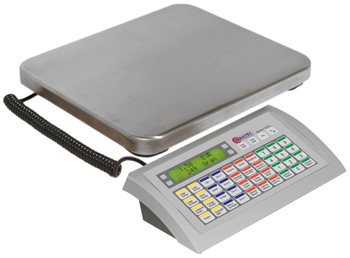

50kg parcelscale with rate calculation

• interface to franking machines or PC
• weight steps: 10g
• rate calculation and weighing
• also available for weighing-only
• stainless steel platform
• platform size 31 x 27,5 x 3,5 cm


10kg/100kg parcelscale with rate calculation

• interface to franking machines or PC
• weight steps: 10g
• rate calculation and weighing
• also available for weighing only
• stainless steel platforms
• platform sizes 31 x 27,5 x 3,5 cm and 19 x 27,5 x w3,5cm


POST OFFICE OPTIONS

Double Display

• external customer display for postal counter use


OIML certificate of Weight & Measures

• weight steps 0 - 2kg: 0,5g / 0 - 12kg: 1g
• large LCD-Display
• rate calculation and weighing
• counting function
• platform size 255 x 160mm

THIS MODEL IS IN PREPARATION


STANDS

Plexi stand for IJ45 - IJ110

Plexi stand specially for IJ35

RATE CHANGE OPTIONS


Keyboard Layout

• for changes of the rate structure a new keyboard wlayout is necessary. The new layout is delivered wtogether with the new rate chip.

• the layout is easily exchangeable by the user himself


Rate Chip

• the postal rates are stored in a chip module. For wupdates a new chip has to be inserted.
• the chip module is easily exchangeable by the user whimself



OLDER FRANKING MACHINE INTERFACES

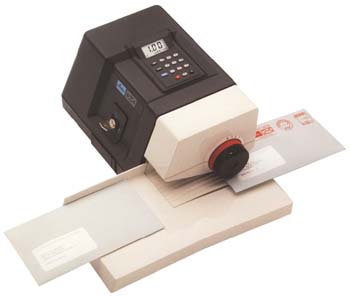

Neopost 5000 interface

• for 5400 and all other machines of the 5xxx serie


Neopost 8000 interface

• for 8500 and all other machines of the 8xxx serie


Neopost SM26 interface

• for all machines of the SM26 serie


Neopost SM75 / SM85 interface

• Current Loop interface to all SM machines with
w I/O-card for external scale connection


Ascom Hasler interface

• for all Ascom Hasler franking machines
w(220, 314, 324,... and Smile)
